SAVE 15%
- Realistic faux wood-grain commercial-grade vinyl surface
- 15.75" × 15.75" modular interlocking tiles
- 1,250 PSI compression strength
- Fast DIY installation — no adhesives required

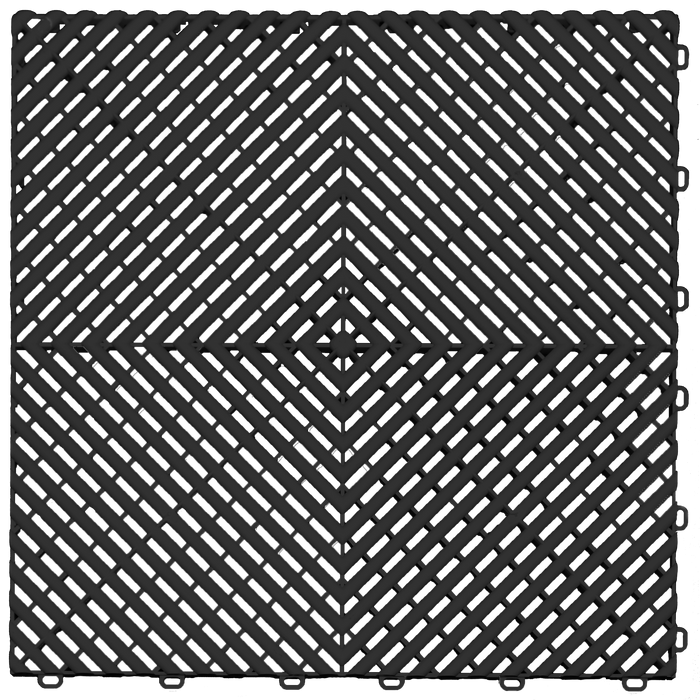

- Mixes with Ribtrax Pro & Ribtrax Smooth Pro
$133.30
You save $23.56 (15%)
PLAN YOUR FLOOR
Swisstrax Vinyltrax Pro Floor Calculator
Enter your floor dimensions, choose a color, and we'll calculate the recommended number of Vinyltrax Pro packs for your project.
ft
ft
Floor Area
0 sq. ft.
Minimum Tiles Required
0
Recommended Tiles + 10%
0
RECOMMENDED PURCHASE
Your Vinyltrax Pro Order
Color:
0
10-Packs
+
0
6-Packs
Total Tiles
0
Coverage
0 sq. ft.
Estimated Total
$0.00
Vinyltrax Pro tiles measure 15.75" × 15.75". Recommended quantities include approximately 10% additional material for perimeter cuts, layout adjustments, and installation waste. Pack quantities are rounded up to ensure sufficient material.
SUGGESTED LAYOUT
Vinyltrax Pro Tile Layout
0
Tile Columns
0
Tile Rows
0
Grid Positions
Full tile area
Perimeter cut area
Right Edge
No cut
Bottom Edge
No cut
This visual represents a simple rectangular floor using 15.75" × 15.75" Vinyltrax Pro tiles. Highlighted perimeter areas indicate where tiles may require cutting. Actual installation conditions, obstacles, tile orientation, and reuse of offcuts can change the final cutting plan.
See Swisstrax in Real Garages
Explore garage flooring installations featuring Swisstrax modular floor tiles in a variety of colors, patterns, and layouts.
Select an image to view it larger.
Ready to transform your space?
Shop Vinyltrax Pro Colors & Options →Complete Your Swisstrax Floor
Add compatible hooks, shelves, and storage accessories to get more from your HandiWALL installation.
Swisstrax Vinyltrax Pro combines the modular convenience of interlocking Swisstrax flooring with the finished appearance of a commercial-grade vinyl surface. Designed with realistic faux wood-grains and patterns, Vinyltrax Pro creates a clean, upscale floor without the adhesives, coatings, or permanent installation associated with traditional flooring.
Each 15.75" × 15.75" tile features a commercial-grade vinyl inlay set into a durable polypropylene base. The interlocking design allows tiles to snap together for fast installation while maintaining access to the subfloor when needed.
Premium Faux Wood-Grain Modular Flooring
Vinyltrax Pro is designed for spaces where appearance matters as much as durability. Its closed-profile surface provides a more finished, traditional flooring appearance while retaining the flexibility of a modular tile system.
Use Vinyltrax Pro throughout a space or combine it with compatible 15.75" Swisstrax tiles such as Ribtrax Pro and Ribtrax Smooth Pro to create borders, accent areas, transitions, or purpose-built flooring layouts.
Key Features
- Commercial-grade vinyl inlay – Creates a finished, premium surface with realistic faux wood-grain styling.
- Modular interlocking construction – Installs without glue, mortar, coatings, or permanent fasteners.
- 1,250 PSI compression strength – Engineered for durable residential and commercial applications.
- Advanced underside channeling – Provides space beneath the flooring for routing and concealing wiring.
- Customizable layouts – Combine colors and compatible Swisstrax tile styles to create custom patterns and defined areas.
- Modular and replaceable – Individual tiles can be removed or replaced without resurfacing the entire floor.
Ideal Applications
- Showrooms and display areas
- Home workshops and hobby spaces
- Trade show and event flooring
- Retail displays
- Home gyms and recreation spaces
- Offices and commercial interiors
- Garage accent and finished-use areas
Vinyltrax Pro Specifications
Tile Size: 15.75" × 15.75" (40 cm × 40 cm)
Height / Thickness: 0.75" (1.9 cm)
Weight: Approximately 41.6 oz. (2.6 lb) per tile
Surface: Commercial-grade vinyl inlay
Base Material: UV-stabilized virgin polypropylene
Compression Strength: 1,250 PSI
Temperature Tolerance: -22°F to 248°F
Fire Rating: HB horizontal burn rating
Warranty: 15 years
Compatibility: Compatible with other 15.75" Swisstrax tiles, including Ribtrax Pro and Ribtrax Smooth Pro
Important Application Note: Vinyltrax Pro is not recommended by Swisstrax for permanent outdoor installations or areas where vehicles will be parked on the tile long-term. For regular vehicle parking applications, use or combine Vinyltrax Pro with Ribtrax Pro or Ribtrax Smooth Pro.
PLAN YOUR FLOOR
Swisstrax Vinyltrax Pro Floor Calculator
Enter your floor dimensions, choose a color, and we'll calculate the recommended number of Vinyltrax Pro packs for your project.
ft
ft
Floor Area
0 sq. ft.
Minimum Tiles Required
0
Recommended Tiles + 10%
0
RECOMMENDED PURCHASE
Your Vinyltrax Pro Order
Color:
0
10-Packs
+
0
6-Packs
Total Tiles
0
Coverage
0 sq. ft.
Estimated Total
$0.00
Vinyltrax Pro tiles measure 15.75" × 15.75". Recommended quantities include approximately 10% additional material for perimeter cuts, layout adjustments, and installation waste. Pack quantities are rounded up to ensure sufficient material.
SUGGESTED LAYOUT
Vinyltrax Pro Tile Layout
0
Tile Columns
0
Tile Rows
0
Grid Positions
Full tile area
Perimeter cut area
Right Edge
No cut
Bottom Edge
No cut
This visual represents a simple rectangular floor using 15.75" × 15.75" Vinyltrax Pro tiles. Highlighted perimeter areas indicate where tiles may require cutting. Actual installation conditions, obstacles, tile orientation, and reuse of offcuts can change the final cutting plan.
How to Install Swisstrax Vinyltrax Pro
Swisstrax Vinyltrax Pro installs as a modular floating floor using the integrated interlocking system. The tiles snap together without permanently bonding the flooring to the subfloor, making installation fast and allowing individual tiles to be removed or replaced later.
1
Prepare the Floor
Remove loose debris and thoroughly clean the existing floor before installation. The surface should be solid and reasonably level. Address major damage, high spots, or other conditions that could interfere with the finished tile surface.
2
Plan the Layout
Measure the space and determine your tile direction and pattern before beginning. Plan around walls, cabinets, posts, door openings, transitions, and other fixed obstacles before snapping the tiles together.
3
Interlock the Tiles
Begin from a suitable corner and connect the tiles using the integrated SwissTrax interlocking system. Continue across the floor while maintaining the desired direction, pattern, and alignment. No floor adhesive is required for the modular tile installation.
4
Cut Perimeter Tiles
Measure and trim perimeter tiles as needed around walls, cabinets, posts, and other obstacles. Use appropriate cutting equipment and make careful, accurate cuts for a clean finished perimeter.
5
Finish Exposed Edges
Where the floor ends at an exposed edge or transition, compatible SwissTrax edge and corner pieces can be added for a cleaner, more finished transition.
Planning tip:
Use the Vinyltrax Pro floor calculator above before ordering. The calculator
includes approximately 10% additional material for perimeter cuts, layout
adjustments, and normal installation waste.
Important application note:
Swisstrax does not recommend Vinyltrax Pro for permanent outdoor installations
or for long-term vehicle parking. For areas regularly used to park vehicles,
use or combine Vinyltrax Pro with Ribtrax Pro or Ribtrax Smooth Pro.
Swisstrax Vinyltrax Pro FAQs
Answers to common questions about Vinyltrax Pro sizing, installation, compatibility, vehicle use, care, and ordering.
How large is each Vinyltrax Pro tile?
Each Vinyltrax Pro tile measures 15.75" × 15.75" and is approximately 0.75" thick.
What is Vinyltrax Pro made from?
Vinyltrax Pro combines a commercial-grade vinyl inlay with a durable polypropylene modular tile base. The vinyl surface provides the finished decorative appearance while the base provides the interlocking structure.
Is Vinyltrax Pro made from real wood?
No. Vinyltrax Pro uses a realistic faux wood-grain vinyl surface rather than real wood, giving you a finished wood-look appearance in a modular interlocking floor tile.
How many Vinyltrax Pro tiles do I need?
Measure the width and length of your floor, then use the Vinyltrax Pro floor calculator above. It calculates the minimum tile count, adds approximately 10% for cuts and waste, and rounds the recommendation up to complete 10-packs.
How many tiles are in a Vinyltrax Pro pack?
Vinyltrax Pro is sold here in 10-packs. The calculator above automatically rounds your project quantity to complete 10-pack increments.
Does Vinyltrax Pro require adhesive?
No floor adhesive is required for installation. Vinyltrax Pro tiles use the SwissTrax interlocking system to create a modular floating floor.
Can Vinyltrax Pro be installed over concrete?
Yes. Vinyltrax Pro can be installed over a suitable existing concrete surface as long as the floor is clean, solid, and reasonably level.
Can I park a vehicle on Vinyltrax Pro long term?
SwissTrax does not recommend Vinyltrax Pro for long-term vehicle parking. For areas regularly used to park vehicles, use or combine Vinyltrax Pro with Ribtrax Pro or Ribtrax Smooth Pro.
Can Vinyltrax Pro be used outdoors permanently?
SwissTrax does not recommend Vinyltrax Pro for permanent outdoor installations.
Can Vinyltrax Pro be combined with other SwissTrax tiles?
Yes. Vinyltrax Pro is compatible with other 15.75" SwissTrax tiles, including Ribtrax Pro and Ribtrax Smooth Pro. This makes it possible to create mixed-use areas, borders, transitions, or decorative layouts.
Can Vinyltrax Pro tiles be cut?
Yes. Vinyltrax Pro tiles can be trimmed around walls, cabinets, posts, and other fixed obstacles. Measure carefully and use appropriate cutting equipment for clean perimeter cuts.
Can individual Vinyltrax Pro tiles be replaced?
Yes. Because the floor is modular, individual tiles can be removed and replaced without replacing the entire floor.
Should I order extra tiles?
Yes. Extra material is useful for perimeter cuts, layout adjustments, and future changes. The calculator above includes approximately 10% additional material in its recommendation.
