SAVE 15%
- Made in the USA
- 3,120 PSI compression strength
- Drain-through design for easier cleaning
- Fast interlocking installation — no adhesives
- 15.75" × 15.75" modular tiles
$51.50
You save $9.08 (15%)
PLAN YOUR FLOOR
Swisstrax Ribtrax Pro Floor Calculator
Enter your floor dimensions, choose a color, and we'll calculate the recommended number of Ribtrax Pro packs for your project.
ft
ft
Floor Area
0 sq. ft.
Minimum Tiles Required
0
Recommended Tiles + 10%
0
RECOMMENDED PURCHASE
Your Ribtrax Pro Order
Color:
0
24-Packs
+
0
6-Packs
Total Tiles
0
Coverage
0 sq. ft.
Estimated Total
$0.00
Ribtrax Pro tiles measure 15.75" × 15.75". Recommended quantities include approximately 10% additional material for perimeter cuts, layout adjustments, and installation waste. Pack quantities are rounded up to ensure sufficient material.
SUGGESTED LAYOUT
Ribtrax Pro Tile Layout
0
Tile Columns
0
Tile Rows
0
Grid Positions
Full tile area
Perimeter cut area
Right Edge
No cut
Bottom Edge
No cut
This visual represents a simple rectangular floor using 15.75" × 15.75" Ribtrax Pro tiles. Highlighted perimeter areas indicate where tiles may require cutting. Actual installation conditions, obstacles, tile orientation, and reuse of offcuts can change the final cutting plan.
See Swisstrax in Real Garages
Explore garage flooring installations featuring Swisstrax modular floor tiles in a variety of colors, patterns, and layouts.
Select an image to view it larger.
Ready to transform your garage floor?
View Ribtrax Pro Colors & Options →Complete Your Swisstrax Floor
Add compatible Swisstrax edge pieces, corners, and flooring accessories to complete your Ribtrax Pro installation.
Swisstrax Ribtrax Pro Modular Garage Floor Tiles
Transform your garage, workshop, showroom, or commercial space with Swisstrax Ribtrax Pro, a premium modular flooring system engineered for durability, drainage, easy maintenance, and a distinctive finished appearance.
The open-profile ribbed surface allows water, dirt, and small debris to pass below the walking and driving surface. Integrated channeling underneath the tiles helps manage moisture and debris while keeping the finished floor elevated above the concrete.
Ribtrax Pro installs over most hard, level surfaces using an interlocking, free-floating system. No adhesives or permanent fasteners are required, and individual tiles can be removed or replaced when needed.
Why Choose Ribtrax Pro?
- Open-profile drainage design – Water, dirt, and small debris can pass through the tile surface.
- 3,120 PSI compression strength – Engineered for demanding garage, automotive, residential, and commercial applications.
- Easy DIY installation – Interlocking tiles snap together without glue, mortar, coatings, or permanent fasteners.
- Made in the USA – Premium modular flooring manufactured in the United States.
- UV-stabilized polypropylene – Built for long-term durability across a wide range of applications.
- Customizable and replaceable – Create custom patterns and replace individual tiles without resurfacing the entire floor.
Ideal Applications
Ribtrax Pro is well suited for residential garages, automotive shops, detailing bays, workshops, showrooms, aircraft hangars, home gyms, basements, retail displays, commercial facilities, and other spaces where durable modular flooring and drainage are important.
Ribtrax Pro Specifications
| Tile Size | 15.75" × 15.75" (40 cm × 40 cm) |
| Height / Thickness | 0.75" (1.9 cm) |
| Material | UV-stabilized polypropylene |
| Compression Strength | 3,120 PSI |
| Temperature Tolerance | -22°F to 248°F |
| Surface | Open-profile ribbed design |
| Installation | Interlocking, free-floating system; no adhesives required |
| Warranty | Limited Lifetime Warranty |
| Compatibility | Compatible with applicable Swisstrax 15.75" PRO-series tiles |
Ribtrax Pro vs. Ribtrax Smooth Pro

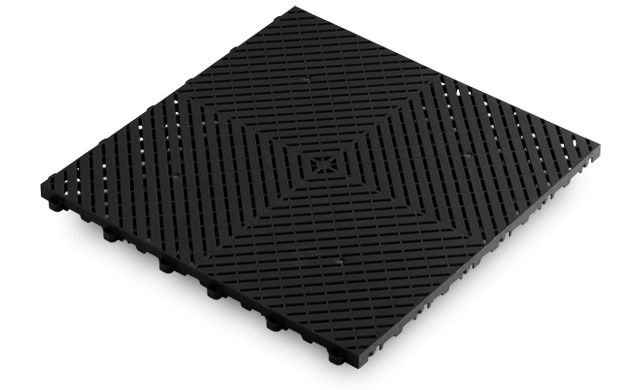

Ribtrax Pro features an open ribbed surface that allows water and small debris to pass directly through the face of the tile, making it an excellent choice when drainage and airflow are priorities. Ribtrax Smooth Pro provides a smoother, more continuous finished surface while retaining engineered drainage beneath the flooring.
Choose Ribtrax Pro for maximum open-surface drainage or Ribtrax Smooth Pro when a smoother walking and working surface is preferred. Compatible Swisstrax PRO-series tiles can also be combined to create borders, patterns, parking zones, and other custom floor designs.
PLAN YOUR FLOOR
Swisstrax Ribtrax Pro Floor Calculator
Enter your floor dimensions, choose a color, and we'll calculate the recommended number of Ribtrax Pro packs for your project.
ft
ft
Floor Area
0 sq. ft.
Minimum Tiles Required
0
Recommended Tiles + 10%
0
RECOMMENDED PURCHASE
Your Ribtrax Pro Order
Color:
0
24-Packs
+
0
6-Packs
Total Tiles
0
Coverage
0 sq. ft.
Estimated Total
$0.00
Ribtrax Pro tiles measure 15.75" × 15.75". Recommended quantities include approximately 10% additional material for perimeter cuts, layout adjustments, and installation waste. Pack quantities are rounded up to ensure sufficient material.
SUGGESTED LAYOUT
Ribtrax Pro Tile Layout
0
Tile Columns
0
Tile Rows
0
Grid Positions
Full tile area
Perimeter cut area
Right Edge
No cut
Bottom Edge
No cut
This visual represents a simple rectangular floor using 15.75" × 15.75" Ribtrax Pro tiles. Highlighted perimeter areas indicate where tiles may require cutting. Actual installation conditions, obstacles, tile orientation, and reuse of offcuts can change the final cutting plan.
How to Install Swisstrax Ribtrax Pro
Swisstrax Ribtrax Pro is designed for a straightforward modular installation. The tiles interlock without adhesives and can be installed over most clean, solid, level garage floors.
1
Prepare the Floor
Remove loose debris and clean the existing floor before installation. Address major surface damage, high spots, or other conditions that could interfere with the finished tile surface.
2
Plan the Layout
Measure the space and determine your tile pattern before beginning. Plan borders, accent colors, garage-door transitions, cabinets, posts, and other fixed obstacles before snapping tiles together.
3
Interlock the Tiles
Begin from a suitable corner and connect the tiles using the integrated interlocking system. Work across the floor while maintaining the intended pattern and alignment.
4
Cut Perimeter Tiles
Ribtrax Pro can be trimmed to fit around walls, cabinets, posts, and other obstacles. Swisstrax recommends using an electric saw with a fine-toothed blade when cutting tiles.
5
Finish Exposed Edges
Where the flooring terminates at an exposed edge, such as a garage-door opening, compatible Swisstrax edge pieces can be used to create a smoother finished transition.
Planning tip:
Use the Ribtrax Pro floor calculator above before ordering. The calculator
includes approximately 10% additional material for perimeter cuts, layout
adjustments, and normal installation waste.
Swisstrax Ribtrax Pro FAQs
Answers to common questions about Ribtrax Pro sizing, installation, drainage, cleaning, vehicle use, and ordering.
How large is each Ribtrax Pro tile?
Each Ribtrax Pro tile measures 15.75" × 15.75" and is approximately 0.75" high.
How many Ribtrax Pro tiles do I need?
Measure the width and length of your floor, then use the Ribtrax Pro floor calculator above. It calculates the minimum tile count, adds approximately 10% for cuts and waste, and recommends the most efficient mix of 24-packs and 6-packs.
Can Ribtrax Pro support cars and trucks?
Yes. Ribtrax Pro is designed for garage and vehicle applications, including cars, trucks, motorcycles, ATVs, and other typical garage vehicles.
Can Ribtrax Pro be installed over concrete?
Yes. Ribtrax Pro is commonly installed over existing concrete garage floors. The tiles interlock with one another rather than being permanently bonded to the floor with adhesive.
Does water drain through Ribtrax Pro?
Yes. The open-profile surface allows water, dirt, and debris to pass below the walking surface, while channels beneath the tiles help move moisture and debris through the flooring system.
How do you clean underneath Ribtrax Pro?
Surface debris can be removed with normal garage-cleaning methods such as a wet/dry vacuum. The underside channel system also allows dirt and liquids to be flushed from underneath the flooring when needed.
Can Ribtrax Pro tiles be cut?
Yes. Ribtrax Pro can be cut around walls, cabinets, posts, and other fixed obstacles. SwissTrax recommends an electric saw with a fine-toothed blade.
Can individual tiles be replaced?
Yes. Because the floor is modular, individual tiles can be removed and replaced without replacing the entire floor.
Can I combine multiple Ribtrax Pro colors?
Yes. Ribtrax Pro is available in multiple colors, allowing you to create borders, checkerboard patterns, parking zones, accent areas, and other custom layouts.
Should I order extra tiles?
Yes. For wall-to-wall installations, extra material is useful for perimeter cuts and layout adjustments. The calculator above includes approximately 10% additional material in its recommendation.
