HandiWALL 8' x 4' Complete Garage Storage Slatwall Starter Kit

How to Install Your HandiWALL 8' × 4' Slatwall System

This starter kit includes everything needed for the core 8-foot-wide × 4-foot-high HandiWALL installation: four 96" W × 12" H slatwall panels, matching perimeter J-trim, and 100 color-matched 1-5/8" installation screws.

The four panels install horizontally and stack together to create 32 sq. ft. of finished slatwall storage. Once the wall is installed, add and arrange the hooks, baskets, or shelves included with your selected storage package.

What's Included for Installation

• 4 × 96" W × 12" H HandiWALL slatwall panels
• 2 × 96" matching Large J-trim pieces
• 2 × 48" matching Large J-trim pieces
• 100 × color-matched 1-5/8" installation screws
• Your selected storage accessory package

Tools You'll Need

• Tape measure
• Level or laser level
• Stud finder
• Pencil or marker
• Power drill or impact driver
• Circular saw or miter saw with a fine-tooth blade, if cutting is required
• Safety glasses and hearing protection

1 Measure and Mark the 8' × 4' Installation Area

Select the location for your HandiWALL system and measure an area approximately 96" wide × 48" high. The four included panels are each 96" wide × 12" high and are designed to stack horizontally to create the complete 8' × 4' slatwall section.

Use a level or laser level to establish a straight reference line for the bottom of the installation. Taking time to establish a level starting point is important because each additional panel will stack above the first.

2 Locate and Mark the Wall Studs

Use a stud finder to locate the wall studs throughout the installation area and clearly mark each stud location. The HandiWALL panels should be securely fastened into the wall studs for maximum strength and performance.

When installing over drywall, make sure the included installation screws penetrate the studs behind the drywall.

3 Prepare the Perimeter J-Trim

Your kit includes matching J-trim for all four sides of the 8' × 4' installation. The two 96" pieces are used along the top and bottom, while the two 48" pieces finish the left and right sides.

Measure the installation area carefully before positioning or cutting any trim. The J-trim creates a clean, finished border around the exposed edges of the HandiWALL panels.

4 Install the First HandiWALL Panel

Begin with the bottom 96" panel. Position it within the installation area and use a level to make sure the panel is perfectly straight before fastening it.

Secure the panel into the wall studs using the included color-matched 1-5/8" installation screws. The first panel establishes the alignment for the remaining three rows, so verify that it is level before continuing.

5 Install the Remaining Three Panels

Position the second panel directly above the first and fully engage the panel connection. Check the alignment, then fasten the panel securely into the wall studs.

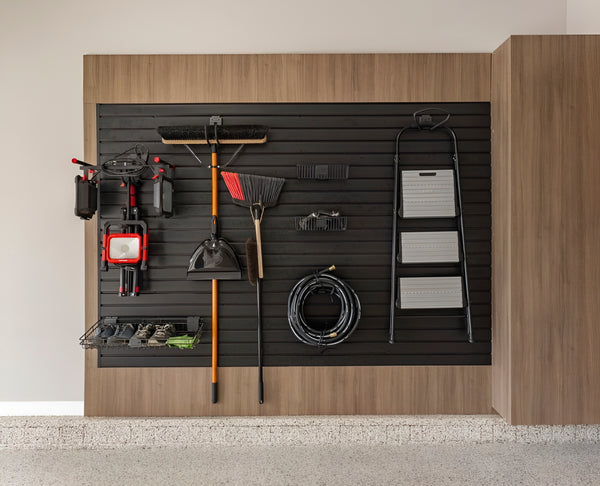

Repeat the process with the third and fourth panels until all four 96" panels are installed. When complete, the panels will form an approximately 8-foot-wide × 4-foot-high slatwall storage area.

6 Complete the Perimeter Trim

Finish the installation with the included matching J-trim around the exposed perimeter of the slatwall. Check that the trim sits evenly around the panels and that the finished installation is level and secure.

7 Add Your Storage Accessories

Once the HandiWALL panels are securely installed, add the hooks, baskets, or shelves included with your selected storage package.

Position the accessories where they work best for your garage and the items you plan to store. HandiWALL accessories can be moved and rearranged later without changing the wall installation, making it easy to adapt your storage layout as your needs change.

Need to Make the System Narrower?

If your available wall space is less than 8 feet wide, the HandiWALL panels and horizontal J-trim can be cut to fit. Use a circular saw, table saw, or miter saw equipped with a fine-tooth blade.

For the cleanest results, measure carefully before cutting, support the material during the cut, and remove any burrs or debris before installation. Cut each panel to the same finished width so the panel edges remain aligned.

Installing Over Drywall

HandiWALL can be installed directly over drywall. The panels should be fastened through the drywall and securely into the wall studs behind it. Do not rely on the drywall alone to support the storage system.

Installing on Concrete or Masonry

HandiWALL can also be installed on concrete, block, or masonry walls using an appropriate installation method for the wall construction. Furring strips may be used to create a suitable mounting surface before installing the panels.

The included 1-5/8" installation screws are intended for a typical stud-wall installation. Different fasteners or additional materials may be required for concrete, block, masonry, or other wall types.

Weight Capacity and Load Distribution

HandiWALL has a recommended maximum load of up to 100 lbs. per sq. ft. Actual performance depends on proper installation, wall construction, accessory placement, and load distribution.

For heavier items, distribute the load appropriately across the system and use accessories designed for the items being stored.

Need More Detailed Instructions?

For additional installation information, step-by-step photos, cutting tips, and installation guidance, visit our complete HandiWALL installation guide.

View the Complete HandiWALL Installation Guide →

Frequently Asked Questions About the HandiWALL 8' × 4' Starter Kit

Find answers about what's included, storage package options, installation, compatibility, weight capacity, shipping, and expanding your HandiWALL garage storage system.

What is included with the HandiWALL 8' × 4' Starter Kit?

Every kit includes four 96" W × 12" H HandiWALL slatwall panels for 32 sq. ft. of wall coverage, matching perimeter J-trim, 100 color-matched 1-5/8" installation screws, and your choice of one of four storage accessory packages.

How large is the finished HandiWALL system?

The completed slatwall area measures approximately 8 feet wide × 4 feet high and provides 32 sq. ft. of usable slatwall storage space.

Which storage packages can I choose from?

Choose from four storage configurations:

• Mixed Storage: 8 accessories, including hooks and baskets

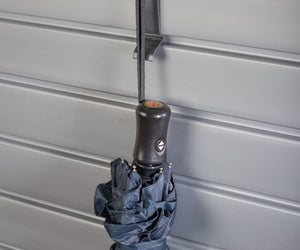

• Hook Storage: 16 hooks in a variety of styles and sizes

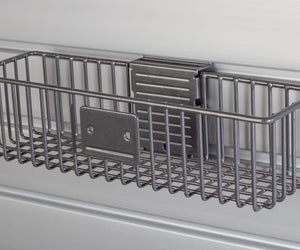

• Basket Storage: 6 baskets in three different sizes
• Shelf & Basket Storage: 2 shelves and 2 large baskets

The 8' × 4' HandiWALL panels, matching perimeter J-trim, and installation screws are included with every storage package.

Can I choose the color of my HandiWALL panels?

Yes. The starter kit is available in your choice of seven HandiWALL panel colors. The included installation screws are color-matched to your selected panel color.

Is perimeter J-trim included?

Yes. Each kit includes matching Large J-trim for the full 8' × 4' perimeter: two 96" pieces and two 48" pieces. The J-trim creates a clean, finished border around the installed slatwall.

Are installation screws included?

Yes. Each kit includes 100 color-matched 1-5/8" installation screws for mounting the HandiWALL panels.

Can HandiWALL be installed over drywall?

Yes. HandiWALL can be installed over drywall as long as the mounting screws properly penetrate the wall studs behind the drywall.

Can HandiWALL be installed on concrete or masonry walls?

Yes. HandiWALL can be installed on concrete, block, or masonry walls using the appropriate anchors and fasteners. Furring strips may also be used to create a suitable mounting surface.

Can the panels be cut if my wall is smaller than 8 feet wide?

Yes. The PVC HandiWALL panels can be cut using standard woodworking tools, including circular saws, table saws, and miter saws equipped with fine-tooth blades. Cutting the included 96" panels allows the system to fit a wall narrower than the standard 8-foot configuration.

How much weight can HandiWALL hold?

HandiWALL has a recommended maximum load of up to 100 lbs. per sq. ft. Weight capacity depends on proper installation, wall construction, accessory placement, and load distribution.

Can I rearrange the hooks, baskets, and shelves after installation?

Yes. Slatwall accessories can be repositioned along the HandiWALL panels as your storage needs change. You can move existing accessories or add additional compatible hooks, baskets, shelves, and other storage accessories at any time.

Are other brands and accessories compatible with HandiWALL panels?

Yes. HandiWALL panels are compatible with other standard 3" on-center slatwall accessories. Common compatible brands include StoreWALL, MKE Slatwall, NewAge, Diamond Life, GarageTek, and more.

HandiWALL is not compatible with proprietary systems such as Crownwall, Flowwall, Gladiator GearWall, Proslat, and Rubbermaid, which use different accessory attachment designs.

Can HandiWALL support bikes, ladders, and power tools?

Yes. With the appropriate accessories and proper installation, HandiWALL can be used to organize bicycles, ladders, lawn equipment, power tools, sports equipment, and many other garage essentials.

Can I expand the 8' × 4' system later?

Yes. The starter kit can be used as the first section of a larger HandiWALL storage system. Additional HandiWALL panels, trim, hooks, baskets, shelves, and other compatible accessories can be added as your storage needs grow.

Is freight included in the price?

Yes. Freight is included to addresses within the contiguous United States, with no additional shipping charge at checkout for this kit.

Are HandiWALL panels made in the USA?

Yes. The HandiWALL slatwall panels included with this starter kit are made in the USA.

Where can I find installation instructions?

Visit our complete HandiWALL installation guide for detailed instructions, photos, and installation tips.
